Adaptive Soccer Walker

Overview

The primary objective of this project is to design and build an adaptive soccer walker system that can be used by our client, Kati, to participate in outdoor recreational activities. Kati is a young woman with Ataxia Telangiectasia. This causes the progressive loss of her motor control abilities. Specifically, Kati has difficulty controlling her lower body strength. She is required to use a walker for balance when participating in any physical activities. Despite this challenge, she loves to play soccer and spend time outdoors on hikes and walking her dogs.

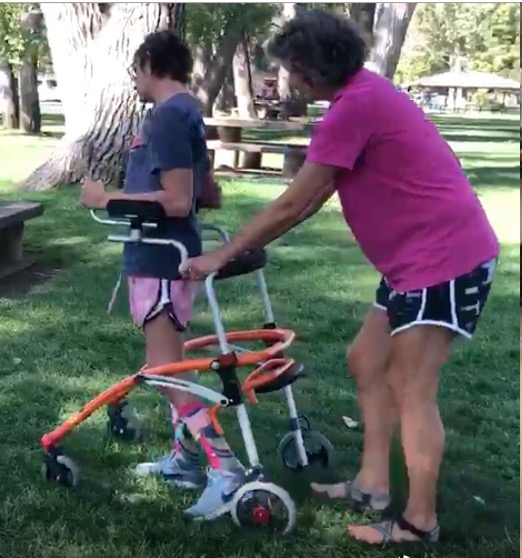

Kati reached out to HCDS when she outgrew her current walker and began having difficulty maneuvering it. The current walker does not provide adequate kicking space and requires a second party to control and stabilize it from behind to prevent tipping and lodging in uneven terrain. Last semester, the team undertook this walker redesign to improve Kati’s overall soccer playing experience. This aim was to eliminate any limitations that prohibit her from playing the sport she loves.

The redesigned walker will strike a balance between comfort and function. Significant modifications include an increased walker base to provide more stability and kicking space, larger wheels more suitable for uneven terrain, and a harness system that helps keep Kati balanced. In addition, the frame is made from aluminum rail that minimizes weight and assembly time. Ultimately, the redesigned walker will allow Kati to independently participate in outdoor activities with confidence.

Documented below are the prototypes, iterations, and analysis undertaken by the team during the design of the adaptive soccer walker.

Live Zoom Chat

Use the link below to join us live from 8:00 – 10:30 a.m. on December 3.

Please use passcode: 885991

Or iPhone one-tap: +13126266799,94919110406# or +16465588656,94919110406#

Or Telephone:
Dial: +1 312 626 6799 (US Toll) or +1 646 558 8656 (US Toll)
Meeting ID: 965 9675 0556

Team Members

  • Michael Byckovski
  • Erik Carrillo
  • Daniel Lutz
  • Mallory Jackson
  • Aflah Al Abri

The Client

  • Kati

Acknowledgements

Project Advisors: Chelsea Salinas, Joel Bach

Colorado School of Mines

Human Centered Design Studio Crowdfunding



Video

Elevator Pitch

Colorado is one of the most active states with outdoor activity at the heart of daily routine. Residents of all ages enjoy time spent outdoors walking, biking, hiking, skiing and more. Here at the Human Centered Design Studio, members combine their passion for the outdoors and interest in helping others to engineer solutions to improve the experience of those with physical limitations. These products empower all individuals to enjoy sports and outdoors in confidence.

Our Client, Kati, is a young woman who loves playing soccer despite having Ataxia Talengaxia. Her current walker consists of undersized wheels, an unstable frame, and a kicking area too small for Kati’s strides. The HCDS adaptive soccer walker will not only give Kati the ability to play the sport she loves, it will enable independence and confidence while playing. Notable improvements include larger casters with better mobility on uneven terrain and a wider base that enhances the walker’s balance and increases the kicking area for Kati.

Even though this adaptive walker is designed for use by Kati in the sport of soccer, its universal design allows for multipurpose use in other recreational activities. The lightweight nature of the frame makes it an excellent walker alternative to take on the go when traveling as well.

Design Approach

The team began design ideation and brainstorming solutions similar to current market walkers. First and foremost, the team spent effort on improving walker maneuverability and stability. Multiple decision matrices with various design considerations were utilized to refine the walker solution. Design options were weighted against overarching project requirements and objectives. To accomplish this, the team redesigned and considered the entire frame size and shape, wheel selection, and weight distribution.

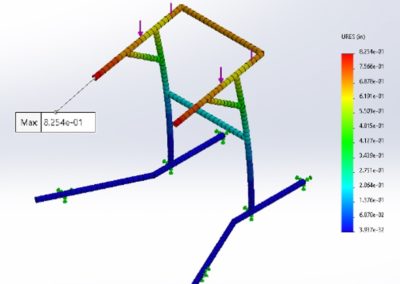

Next, finite element analysis was performed on the walker’s framing to test bending stress and deformation under operating conditions. Furthermore, analysis results helped guide the team in diagonal support placement. These results satisfied all user specifications and confirmed the structural integrity of the walker. Testing with different users followed to ensure the walker performed well on different uneven terrains.



Design Solution



Over the course of several iterations, the team developed a final design that met all project and client requirements. To achieve this, the walker was divided into three separate subsystems. Focusing on these aspects independently allowed the team to arrive at the best design. The frame redesign addressed stability specifications, new wheel sourcing addressed mobility specifications, and the incorporation of a harness addressed comfort specifications. The three subsystems are outlined in more detail below.









Frame



The team initially began designing around our client’s current soccer walker, which is made of circular aluminum tubing. However, the team decided to switch to 80-20 aluminum extrusion rail due to its strength, lightweight, and universal applications. CAD models and FEA were utilized to optimize the support provided by diagonal members while minimizing the overall weight of the walker.

Wheels

The previous wheels had difficulty maneuvering in tall grass, mud, and most surfaces other than pavement. The wheels were too thin, allowing them to sink into the ground. This vastly restricted Kati’s mobility and balance because it required additional force to unlodge the wheels. The goal in sourcing new wheels and casters was to prevent these limitations.

The new walker includes both larger and thicker caster wheels that will perform better in grass and uneven terrain. The rear wheels are much larger which helps them guide over terrain easier. In addition, there is a quick release system on the back axle that allows the wheels to be detached with ease. This improves the ability to transport and store the walker.

Harness

The HCDS walker will incorporate a rock-climbing harness to hold Kati in the walker. This harness is in lieu of the seat that is included with most current market alternatives. A seat causes Kati discomfort and interferes with her ability to play soccer while saturated in the walker. The harness is also attached via carabiners which allows for easy attachment and detachment.

Next Steps

The remaining work on the adaptive soccer walker lies in the physical build. A suitable harness and carabiners have been sourced but not purchased. After analysis iterations in SolidWorks, the team has accurate knowledge on harness points of contact with the aluminum frame. This positioning will best balance Kati’s weight across the upper arm supports.

The next steps for the adaptive walker include:

1. Attach harness onto aluminum framing

2. Attach the handles onto the walker

3. Apply foam covering to any sharp edges

After assembly, the harness will be thoroughly tested to ensure that it meets or exceeds client requirements. If the initial harness style or position falls short of expectations, then further design and iteration will occur so that Kati receives a usable and comfortable solution.
