ABM UV Mask Aligner
ABM UV Mask Aligner
Location
CoorsTek 040
Contact
Alex Dixon – agdixon@mines.edu
GET TRAINED
- Request training in FOM: click on the instrument on the right side of your home page. Not yet registered in FOM? Click here to get started.
- View laboratory policies here.
Instrument Details

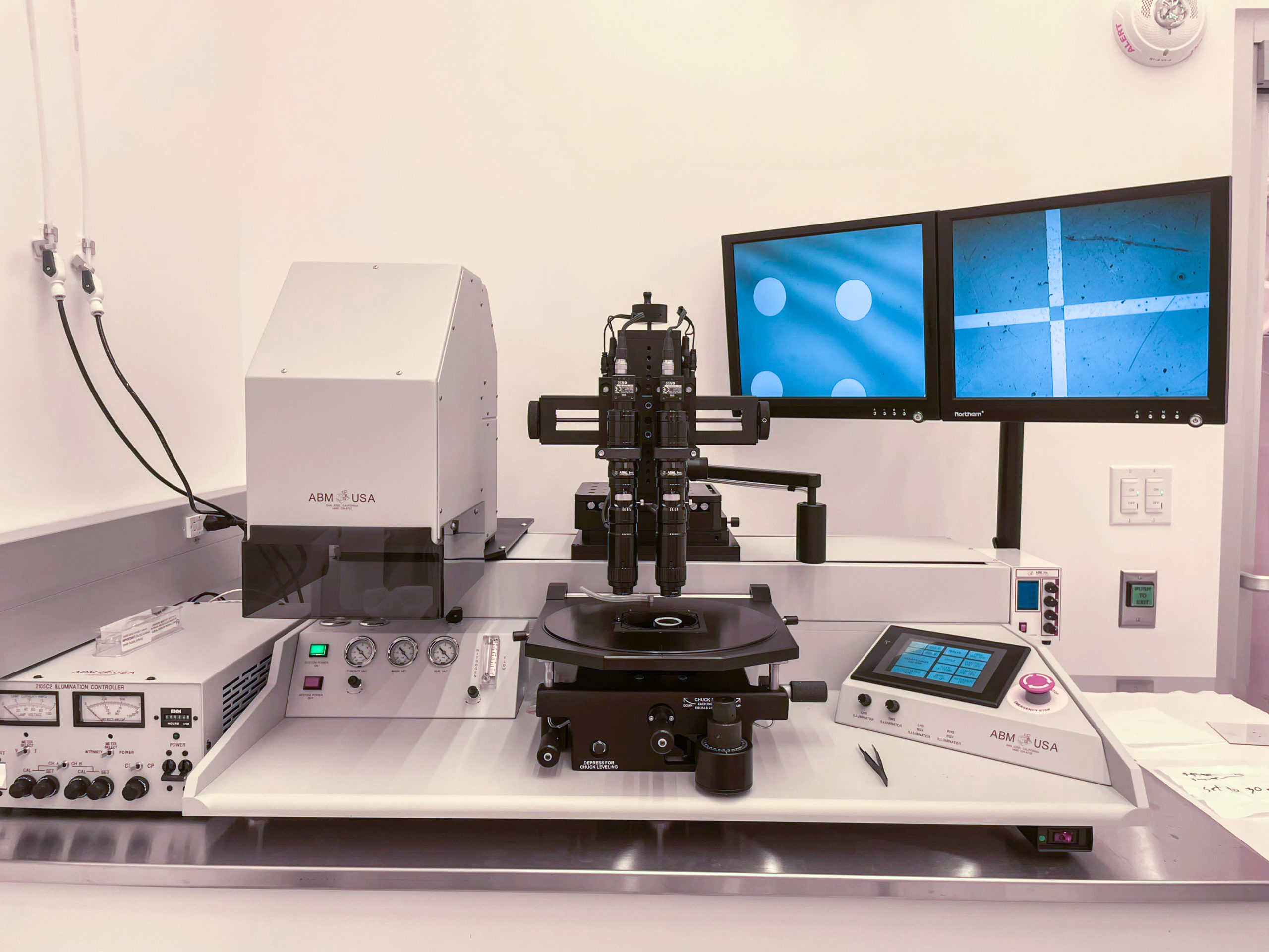

The ABM mask aligner features an intensity-controlled 6″x6″ illumination area, strong illumination at both 400 and 350, two simultaneous operating alignment cameras, auto-leveling sample mount, micrometer adjustments, and semiautomatic operation. It is currently set up for use with 4″ masks and <1″ samples but adjustments can be made upon request.
