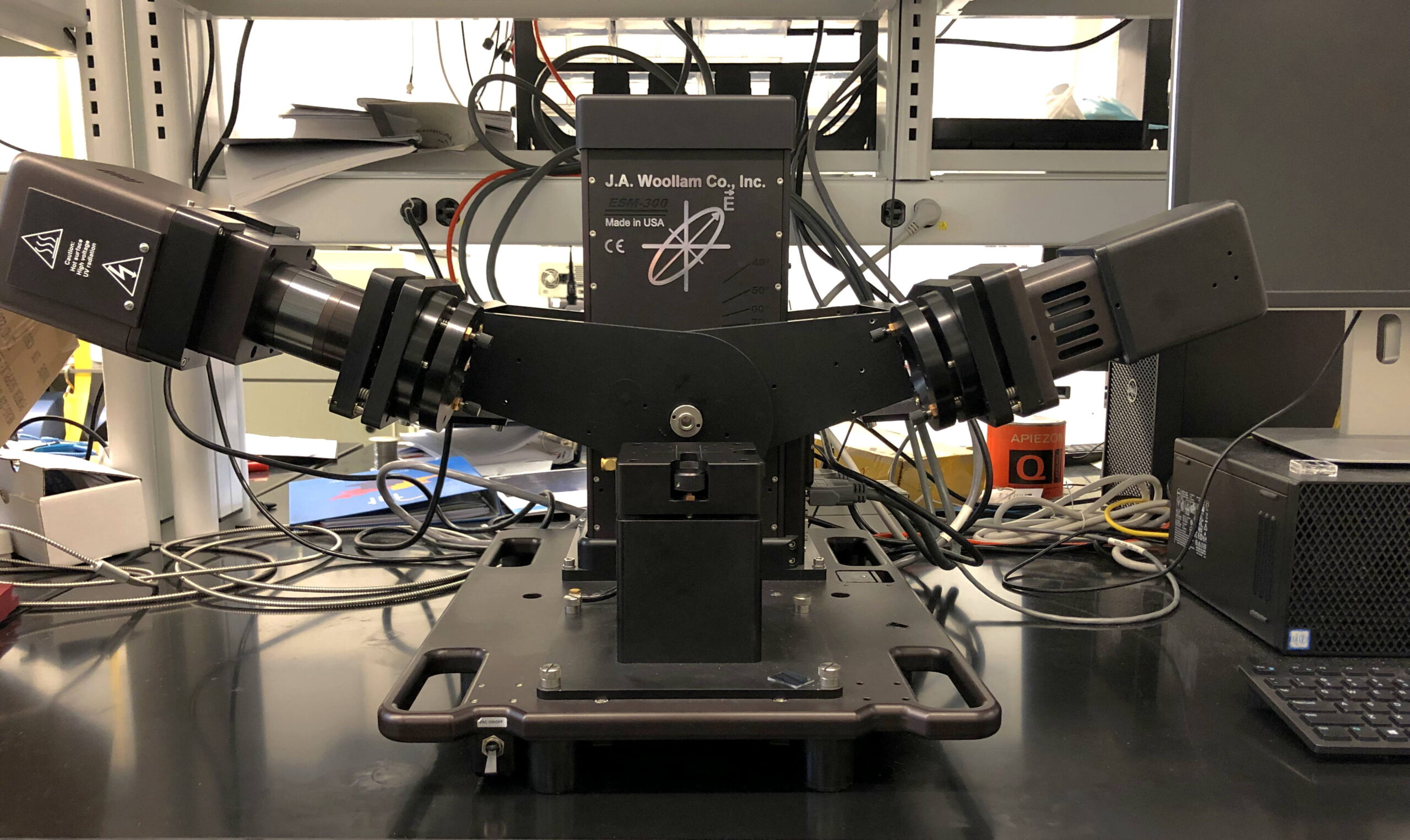

Instrument Details

• Simultaneous measurement at 485 wavelengths between 210 nm and 1000 nm
• Rotating compensator optical path
• Data acquisition for a complete spectrum in as little as 1 sec
• Horizontal sample stage with vacuum chuck sample hold
• Variable incident angle between 45 and 90 degrees
• Automated sample height adjustment
• Beam diameter 2-5 mm
• Focusing optics can be installed to reduce illuminated spot to 0.3 x 0.9 mm
• CompleteEASE software for data acquisition and analysis
